Diameter Range: 1.5 in to 12 in (38.1 mm to 304.8 mm)
Stroke Options: 6 in or 12 in (152.4 mm or 304.8 mm)

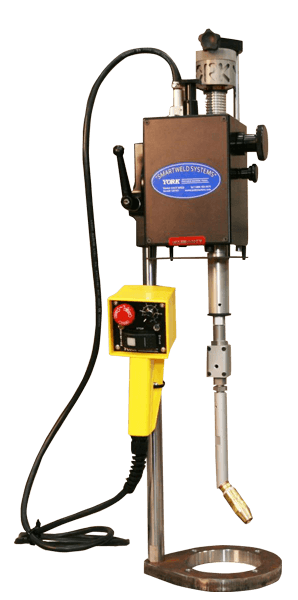

Fully functional Bore Welder made to be an extension of your existing welding capabilities. Comes with multiple adjustment points to accommodate various applications; including, adjustable step, variable rotation speed, and a wide range of diameters. Made with corrosion and arc resistance materials for mitigating wear from use.
Ask about optional attachments for OD Bore Welding and Face Welding applications.
Standard Diameter Range: 1.5 in to 30 in (38.1 mm to 762 mm)
Extended Diameter Range: .5 in to 45 in (12.7 mm to 1143 mm)
Stroke Options: 8 in or 18 in (203.2 mm or 457.2 mm)

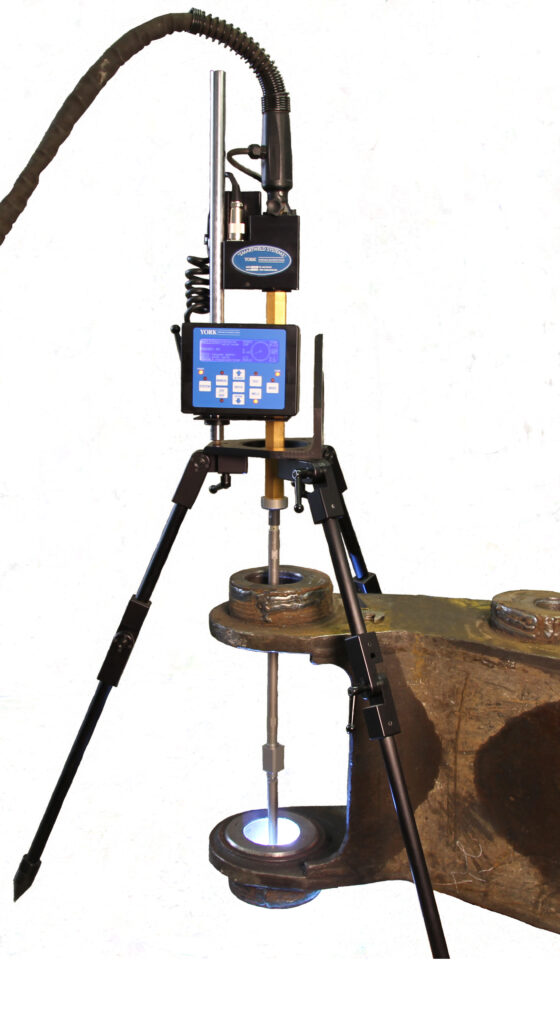

The BW-830 is the next in line Bore Welder made to take bore welding to the next level. With fully programable controls, the BW-830 is capable of auto-skip, segment, bidirectional, variable weld depth, and conical welding requirements. The BW-830 welds in difficult applications with the quality and speed that is unmatched with traditional hand welding.
Ask about optional attachments for OD Bore Welding and Face Welding applications.
