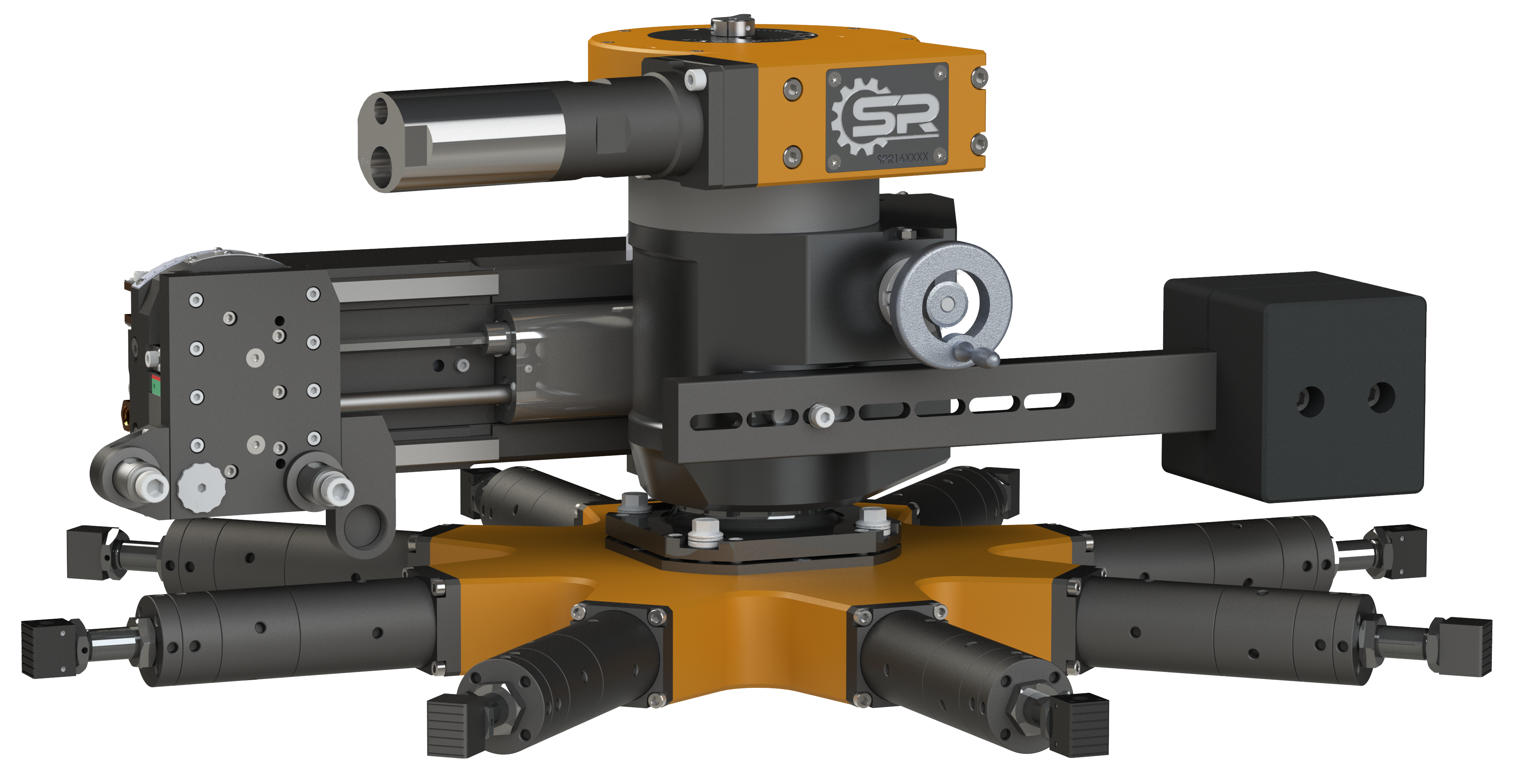

FF-1100 Flange Facer

Mounting Diameter Range: 5.7in – 38.0in (144.78mm – 965.2mm)

Cutting Diameter Range: 5.7in – 43in ( 144.78mm – 1092.2mm)

The FF-1100 is an ID mount flange facer designed for flange refacing and sealing faces of flanges typically used in pressure vessel systems. The FF-1100 can create flat faces and a variety of grooved profile faces (such as RTJs (ring-type joints). With a low-profile and modular design, the FF-1100 can work in the tight and difficult to access places.

With a pneumatic powered drive system, the FF-1100 has an output of 2.45HP and a top speed of 310 rpm, with a max recommended air supply of 70 CFM at 90psi.

Specification
Sheet
Operating
Manual
Request a
Quote

Advantages

  • 32″ and  43″ steel modular arms for stability while cutting
  • Taper locking rotating carriage and easy set indexed/infinite adjust tool posts
  • 2.4HP Air motor with worm drive to generate high torque/rev
  • Linear rails for smooth stable cuts
  • Easy to read scales
  • Toggle between radial and auxiliary feed
  • Easily adjustable Feed/Revs for a desired finish
  • Hand wheel for quickly changing from fwd to rev cutting
  • Multiple setup tab depths
  • Adjustable jaws
  • Conical leveling plate
  • Double slip clutch for reduced downtime cutting
  • Multiple spider sizes for large clamping range

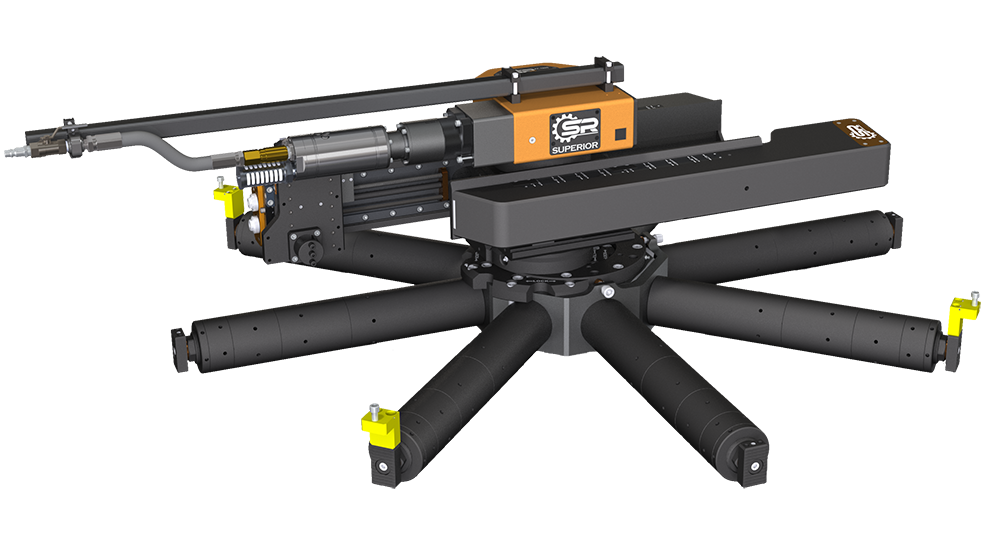

FF-1800 Flange Facer

Mounting Diameter Range: 21.5in – 72.0in (546.1mm – 1828.8mm)

Cutting Diameter Range: 21.5in – 72in ( 546.1mm – 1828.8mm)

The FF-1800 is an ID mount flange facer designed to operate efficiently in tight, challenging spaces, ensuring reliable and consistent results across various flange sizes. The FF-1800 can create flat faces and a variety of grooved profile faces (such as RTJs (ring-type joints).

With a pneumatic powered drive system, the FF-1800 has a max recommended air supply of 90 CFM at 120psi, or can be outfitted with a hydraulic motor for 10HP hydraulic power supply.

Specification
Sheet
Operating
Manual
Request a
Quote

Advantages

  • 41″ and  72″ Steel modular arms with superior rigidity
  • Taper locking rotating carriage and easy set indexed/infinite adjust tool posts
  • Linear rails for smooth stable cuts
  • Toggle between radial and auxiliary feed
  • Quick change change fwd to rev cutting
  • Optional remote feed adjust
  • Double slip clutch for reduced downtime cutting
  • 3.7HP air motor with cone drive to generate high torque
  • Easy adjust feed/rev
  • X-Y precision adjustment
  • Scale for easy positioning of sliding counterweight and steel modular arms
  • Easy adjust feed/rev
  • Precision leveling pads
  • Modular carriage
  • Rotating auxiliary axis
  • Air caddy with E-stop and pressure drop restart button
  • Linear rails for smooth stable cuts
  • 1 in tool holder
  • Spherical levelling base
