Diameter Range: 4.00 in – 9.44 in (101.60 mm – 238.76 mm)

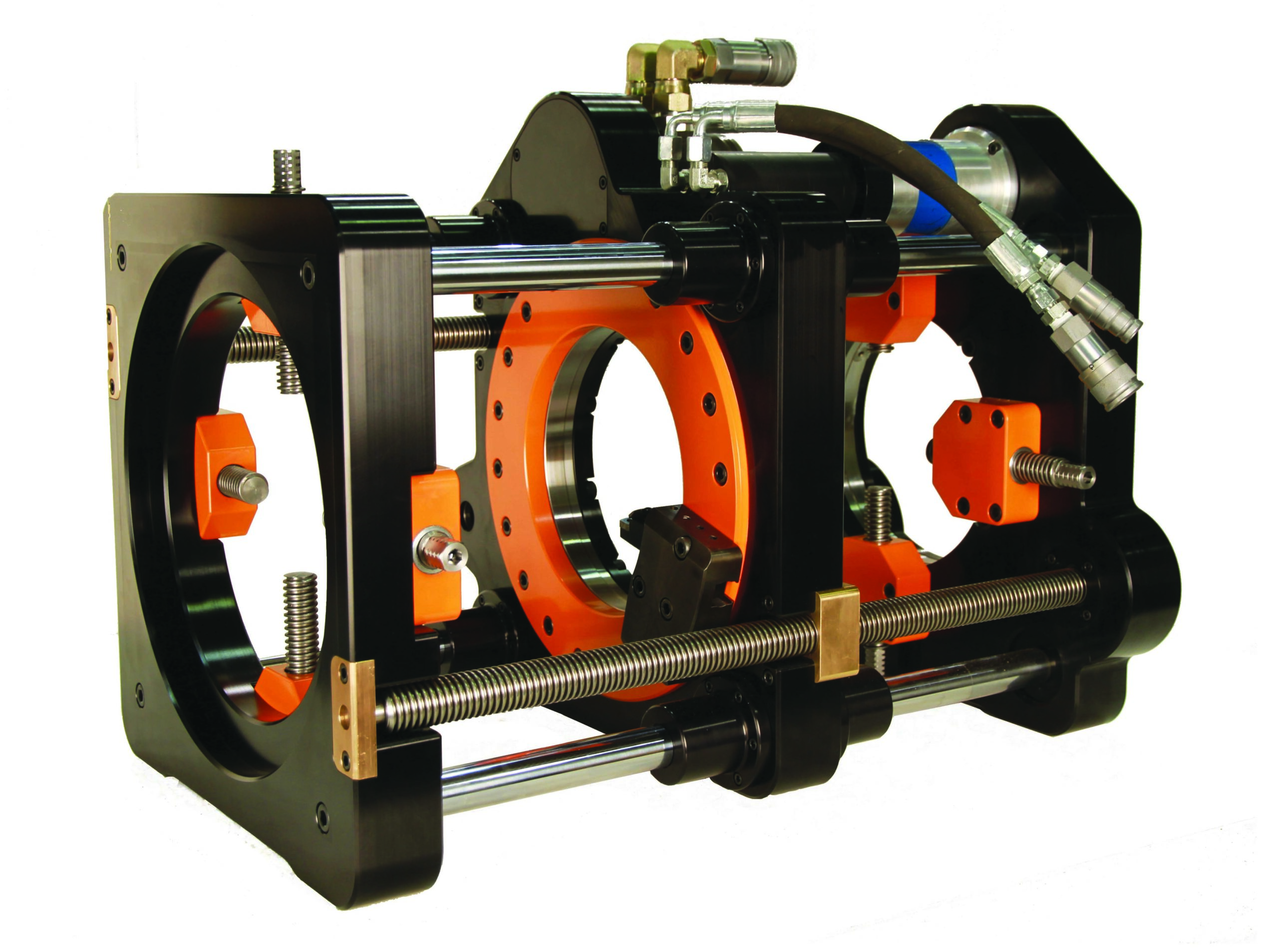

The ILT-1000 InLine Turning Lathe is the perfect tool for on-site resurfacing of large shafts, stub shafts, and bearing journals/seats, requiring little disassembly or costly relocation of equipment. Utilizing linear guide bearings and are driven by two lead screws for uniform travel while cutting. Both feed and rotation are hydraulically driven with continuous speed control and are independently adjustable while in use.
The ILT-1000 uses external clamping rods which will accommodate diameters from 4.00 in to 9.44 in (101.60 mm to 238.76 mm). The standard ILT-1000 has 15.5 in (393.70 mm) of linear travel. Optional travel lengths are available on request.
The ILT-1000 also comes in an optional split-frame configuration to mount around the work piece when it is unsuitable to mount to the work piece from a free end.
Optional hydraulic power supply of 5HP or 10HP.
Diameter Range: 8.0 in – 16.0 in (203.20 mm – 406.40 mm)

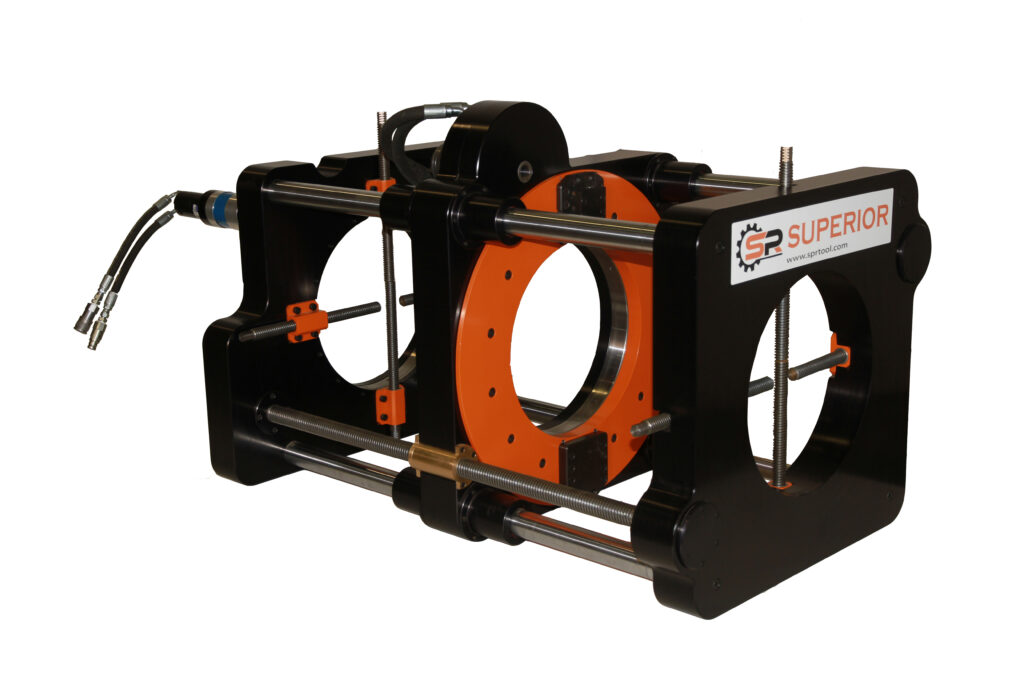

The ILT-1600 InLine Turning Lathe is the perfect tool for on-site resurfacing of larger diameter shafts, stub shafts, and bearing journals/seats, requiring little disassembly or costly relocation of equipment. Utilizing linear guide bearings and are driven by two lead screws for uniform travel while cutting. Both feed and rotation are hydraulically driven with continuous speed control and are independently adjustable while in use.
The ILT-1600 uses external clamping rods which will accommodate diameters from 8.00 in to 16.00 in (203.20 mm to 406.40 mm). The standard ILT-1600 has 28.8 in (731.52 mm) of linear travel. Optional travel lengths are available on request.
The ILT-1600 also comes in an optional split-frame configuration to mount around the work piece when it is unsuitable to mount to the work piece from a free end.
Optional hydraulic power supply of 5HP or 10HP.
